• specifications

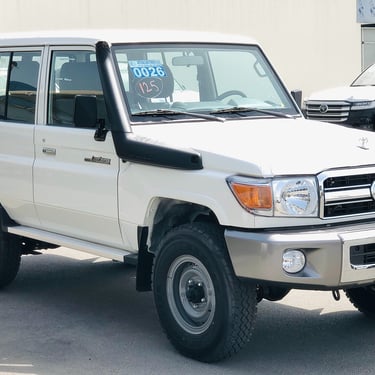

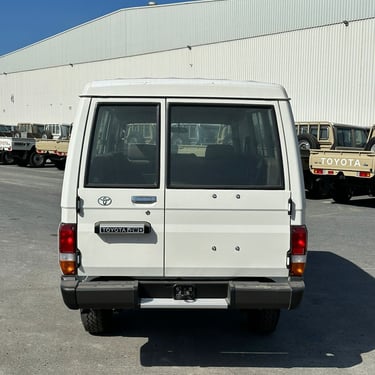

TECHNICAL CHARACTERISTICS LC76 4.2L LX 5-MT 4x4

•
  ENGINE
  Number of cylinders 6
  Engine Type Cylinder in line
  Fuel type Diesel
  Displacement (cc) 4164
  Max power kW/rpm 96/3800
  Max power HP/rpm 131/3800
  Max torque Nm 285/2200
  BODY
  Body style Station wagon
  Number of doors 5 doors
  DIMENSIONS
  Dimensions (Lxwxh) in mm 4720 x 1775 x 1955
  Wheelbase (mm) 2730
  Ground clearance (mm) 230
  TRANSMISSION
  Transmission Part time manual 4x4
  Gearbox Manual

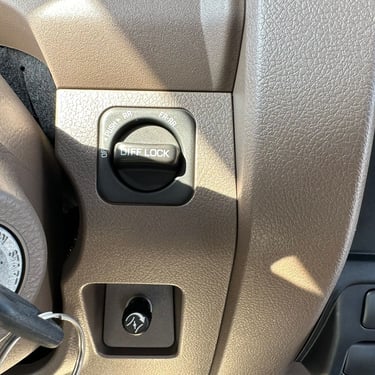

  Front differential Manual locking
  Rear differential Manual locking
  WEIGHT/CAPACITIES
  Fuel tank capacity (L) 130
  Curb weight (kg) 2475
  Gross vehicle weight (kg) 3060
  Number of seats 9
  BRAKES
  Front brake Ventilated discs
  Rear brake Drums discs OT
  Parking brake Manual
  SUSPENSIONS
  Front suspension Coil type
  Rear suspension Leaf
  TYRES
  Tyre dimension 265/70 R16C
  EXTERIOR
  Suspension Standard
  Roof rack NO
  Towing hook Front, Rear
  Snorkel YES
  Mudguards Front, Rear
  Footboard Rear step, Side step
  Front grill Chrome
  Wheels Aluminum
  Door mirrors BLACK
  Bumper - Front & Rear Chrome
  INTERIOR & COMFORT

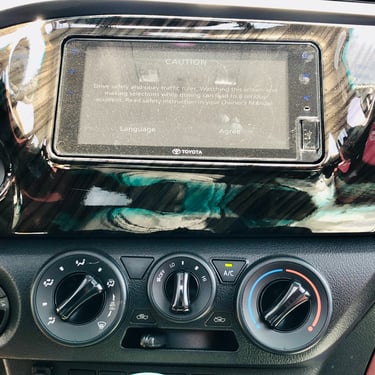

  Radio Radio CD
  Connections USB
  Loud speakers 2
  Air conditioning Manual
  Central armrest Rear
  Cup holder(s) Front
  Locking glove box YES

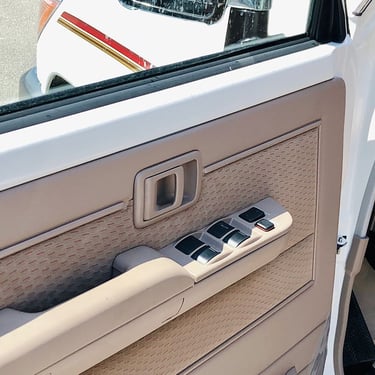

  Power windows -
  Central door locking Yes

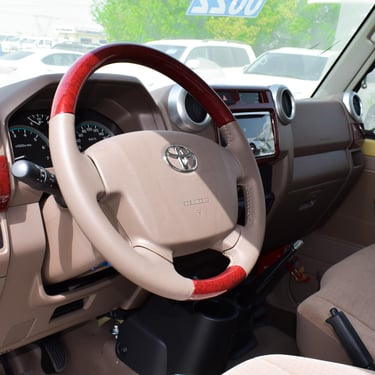

  Steering wheel Urethane
  Adjustable steering wheel. Height and reach adjustable
  Plug 12V 1

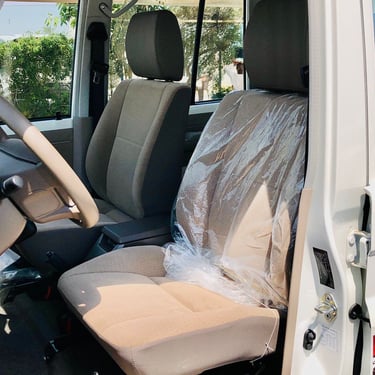

  Front seats 2
  Driver seat Reach adjustable OT
  Upholstery Fabric
  Driver footrest YES
  Room lamps YES
  Power Steering YES
  Car mat YES
  Gearshift & Brake lever Urethane
  PASSIVE SAFETY
  Airbags Driver, Passenger
  Seatbelts - Front 2 x 3 points
  Seatbelts - 2nd row 2 x 3 points + 1 x 2 points
  Headrests Front, Rear

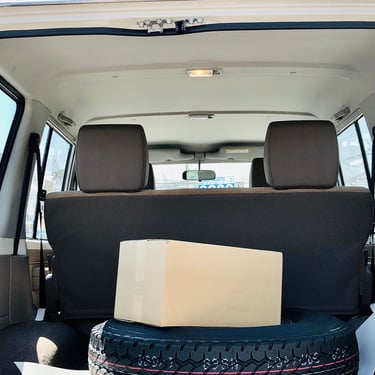

  Number of spare wheels 1
  Fire extinguisher YES

  ACTIVE SAFETY

  Door unlock alert YES
  Headlamps Halogen
  High position brake lamp YES
  Fog lamps Front
  ABS YES
  Emergency warning triangle YES
  Demister Rear windows

Specifications

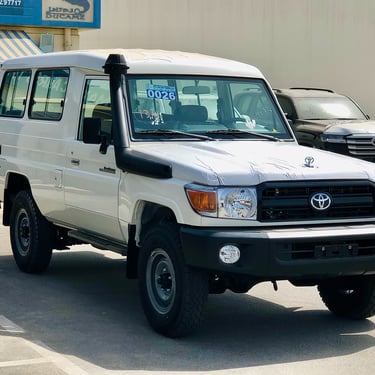

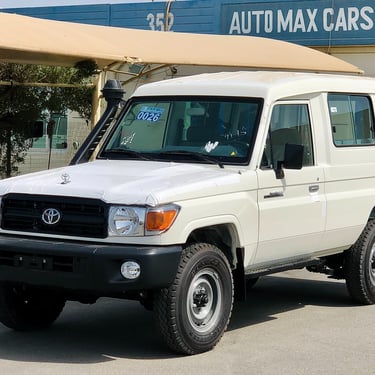

• Model code HZJ78-RJMRS-S6
  Drive 4x4
  Transmission Manual
  Speed 5
  Front suspension Coil
  Rear suspension Leaf
  Front brakes Disc
  Rear brakes Drum
  Number of doors 3
  Number of seats 10+1
  Seat material Vinyl
  Color White
  Engine model 1HZ
  Displacement 4164
  Number of cylinders 6
  Maximum power (kw/rpm) 96/3800
  Maximum power (bhp/rpm): 128/3800
  Maximum torque (Nm/rpm) 285/2200
  Electrics (volts) 12
  Fuel Type Diesel
  Fuel tank capacity (Liters) 90+90
  Engine related standard features
  Air Cleaner: cyclone with snorkel Fuel pump
  Battery: 80D26 (12V) Fuel sedimenter w/warning buzzer
  Brake control valve (Load Sensing Pressure Valve) High altitude compensator
  Differential - front 4.300 2P Power steering
  Differential - rear 4.300 4P Stabilizer bar - front & rear
  Engine coolant Transfer - BF1B 2-4 selector
  Engine oil cooler Transfer box protection
  Engine under body protection Transmission protector
  Fuel filter Washer fluid - Methanol full fill
  Number of seats 10
  Front seating arrangement 1+2
  Front seating type Bench

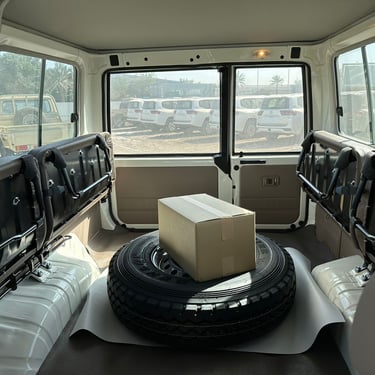

  Rear seating type Bench
  Weights (kg)
  Kerb weight 2230
  Gross Vehicle Weight 3200
  Payload 970
  Dimensions (mm)
  Length 5070
  Width 1770
  Height 2115
  Wheelbase 2980
  Ground clearance 235
  Front tires 7.50R16-8 5.50F - Tubed
  Rear tires7.50R16-8 5.50F - Tubed
  Tire type Radial
  Air conditioning Odometer (digital)
  Ashtray Oil pressure warning light
  Assist grips - front & rear One touch 2-4WD selector (H4 button)
  Bottle Holder (Front) Parking brake warning light
  Brake fluid level warning Pre-wiring for audio with 2 speakers and antenna
  Cigarette lighter Room lamp
  Clock Seat belts: front x 3 (2 x 3 point & 1 x 2 point)
  Dash silencer (interior only) Seat belts: rear x 3 (2 x 3 point & 1 x 2 point)
  Door ajar warning Seat: front, slide D: 195mm P: 135mm (bench)
  Floor mats: rubber (FR: D+P) Speedometer km/h
  Floor silencer (around front pedals) Steering column-Tilt & Telescopic & Collapsible
  Footrest - Driver Sub fuel gauge
  Fuel gauge Sub fuel tank switch
  Fuel level warning light Sun visors D&P
  Glove box: w/lock Timing belt replacement warning light
  Headrests: front (D+P - small) Transfer - 4WD lever & knob
  Headrests: rear x 2 Trip meter (digital)
  Heater: front Ventilation louvre (outlet)
  Idling control button Vinyl floor covering
  Interior rear view mirror (day and night) Voltage meter w/warning light
  Light reminder warning with buzzer Walk in system w/turn
  Meter illumination control Water temperature gauge
  Antenna Outside rear view mirror - door
  Body rust protection Rear quarter glass - sliding
  Bumper: front - extension 136mm Roof rack
  Bumper: rear - painted Side & rear steps
  Clearance lamp Swing-out type back door
  Headlamp: halogen Towing eye: FR & RR closed
  High/Low 2-speed windshield wipers (inc. mist) Windshield - green laminated
  Lockable fuel lid Windshield wiper - fixed
  Mudguards: Front and rear
  Owner's manual - English Tool Kit & Jack

Specifications

Description

• MAKE TOYOTA
  LC 76 T/DSL - E
  BODY TYPE WAGON

  DIMENSIONS
  DIMENSIONS Lx Wx H mm 4875 X 1790 X 1955
  WHEEL BASE mm 2730
  GROUND CLEARANCE mm 262
  MIN. TURNING RADIUS(M) 6.3
  KERB WEIGHT (Kgs) 2230-2385
  GROSS VEHICLE WEIGHT (Kgs) 3060
  FUEL TANK CAPACITY Ltrs. 130

  TIRE
  TIRE SIZE 225/95R16 (TUBELESS)
  WHEEL CAP GRAY PAINTED

  STEERING
  POWER/TILT WITH/WITH
  TELESCOPIC WITH

  BRAKE
  FRONT/REAR V.DISC/ DRUM

  SUSPENSION
  FRONT STD COIL SPRING
  REAR STD LEAF SPRING

  SAFETY
  ABS ABS+VSC+BA+EBD+HAC+ATRC
  AIR BAG D + P
